BMW Headquarters

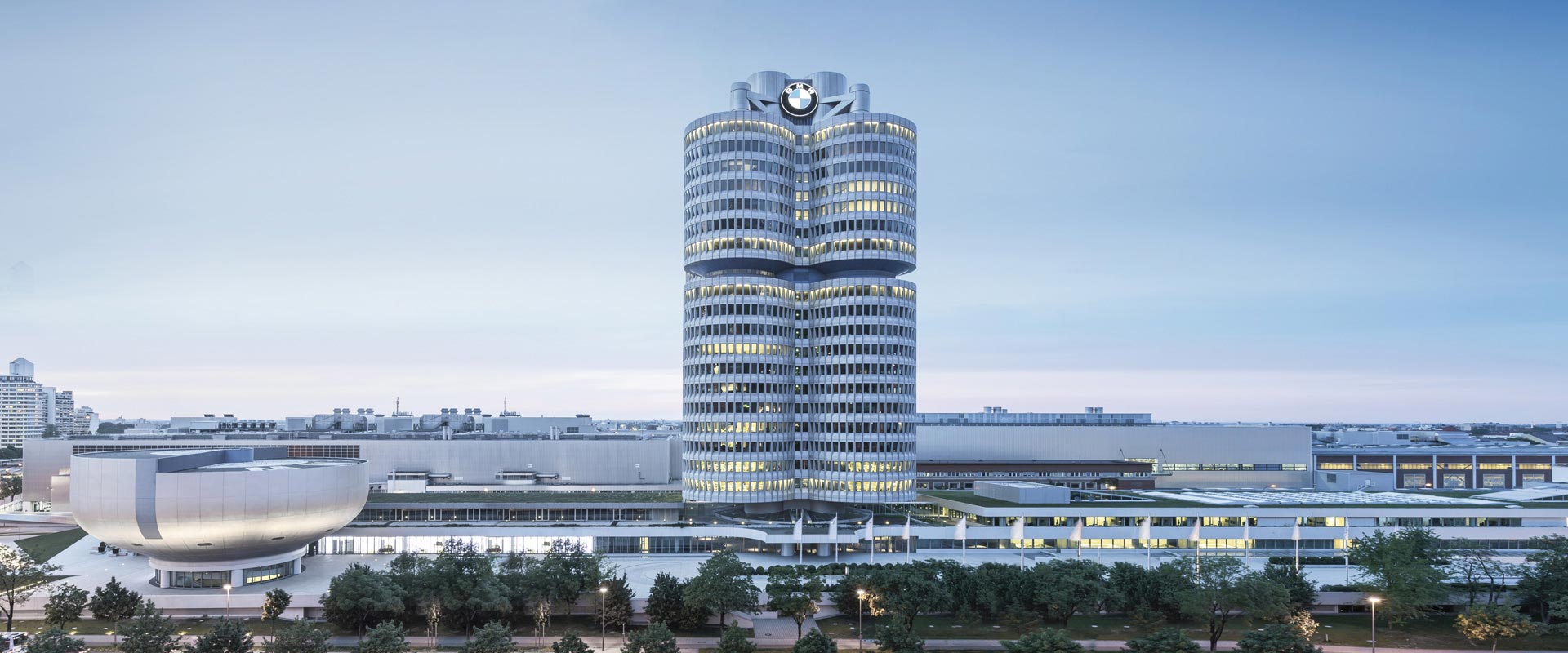

BMW Headquarters, Munich

The BMW Headquarters is both the main administrative building and the symbol of the car manufacturer BMW in Munich. It consists of four perpendicular cylinders arranged next to each other in the form of a cross, each cylinder being further divided vertically by a recess in the facade just above the middle.

The engineering of the building is highly remarkable, since the cylinders do not stand on the ground, but instead hang from the distinctive cantilevers that project out of the four reinforced concrete tubes. Condair DL hybrid humidifiers ensure excellent indoor humidity.


Hybrid humidifier

Condair DL

The Condair DL is the next generation of the Condair Dual2—the world's most successful system for adiabatic humidification. Its hygienic credentials have proven successful in practice and were verified and certified by independent organizations with public responsibility.

Hybrid humidification relies exclusively on the advantages of atomization and evaporation. This results in the sustainable resolution of key problems which can emerge when these technologies are used in isolation. The humidification system is therefore the first choice in terms of hygiene, energy efficiency and cost-effectiveness.

Further information on the Condair DL

Patented HygienePlus® method

Basically, air conditioners and humidification devices are not sterile areas. Even when humidifying water of drinking-water quality is used, this is never completely germ-free. Therefore, microbes can always settle and form hazardous biofilms in humidifiers and in damp areas of air conditioners. Suitable hygiene measures are therefore essential to hinder the growth and propagation of pathogens in adiabatic humidifiers. The germ diagram points out the rapid propagation of microorganisms when no appropriate steps are taken to contain them. The patented HygienePlus® method provides for healthy air and a lasting hygienic environment.

HygienePlus Cartridge

Energy-efficient low-pressure system

The low-pressure mode of operation translates to significant energy savings due to the lesser compression work. By combining the Condair DL humidifier and the reverse osmosis of the Condair AT2, even a pressure booster pump on the humidification system becomes superfluous!

Condair DL jet

Schematic layout

Low-pressure systems generally get by with a significantly shallower design depth than high-pressure humidifiers. Due to the arrangement of the evaporator ceramics so that they cover the full area, and as a result of the spray cone of the molecular diffuser nozzles, the entire overall depth of the Condair DL can be reduced to up to 600 mm. Thanks to its compact design, the humidification chamber can also be shortened, achieving a significant saving in materials.

Schematic layout

PDF / Brochure: Condair DL hybrid humidifier
