THE m.pire, Munich

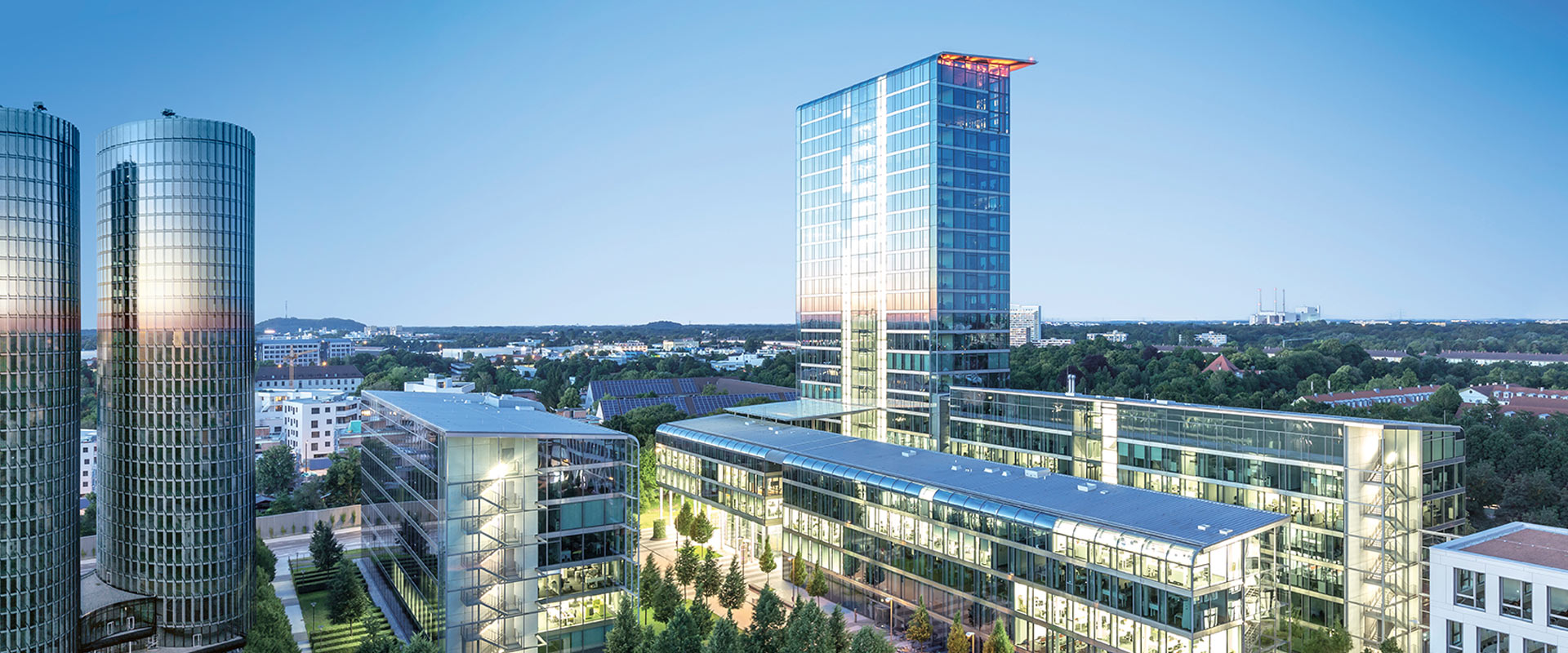

The “THE m.pire” building ensemble, designed by the American star architect Helmut Jahn, consists of a 23­story tower as well as two five-story campus buildings and two seven-story campus buildings. The seamless glass facade confers a visual and spatial sense of harmonic unity on the four elongated building segments and the tower.

A flexible floor plan forms the basis for a future-oriented work environment that maximizes aesthetics and efficiency, allowing the internal space to be divided into individual offices as well as combination and open-plan offices. Two of the buildings, the Skyline Tower and Bailey Palace, have been rented to OSRAM since 2012 and serve as the company’s head office. In total, about 1,200 workstations are available in an area of just over 28,000 m². The OSRAM head office meets the standards for a modern workplace, and satisfies all the requirements for sustainable building management. The buildings have been certified with the DGNB Gold Certificate from the German Sustainable Building Council. Environmental, economic and sociocultural factors were all taken into account for this certification. Condair hybrid humidifiers ensure comfortable humidity levels.

Further information on the Condair DL

---

Patented HygienePlus® method

Basically, air conditioners and humidification devices are not sterile areas. Even when humidifying water of drinking-water quality is used, this is never completely germ-free. Therefore, microbes can always settle and form hazardous biofilms in humidifiers and in damp areas of air conditioners. Suitable hygiene measures are therefore essential to hinder the growth and propagation of pathogens in adiabatic humidifiers. The germ diagram points out the rapid propagation of microorganisms when no appropriate steps are taken to contain them. The patented HygienePlus® method provides for healthy air and a lasting hygienic environment.

Energy-efficient low-pressure system

The low-pressure mode of operation translates to significant energy savings due to the lesser compression work. By combining the Condair DL humidifier and the reverse osmosis of the Condair AT2, even a pressure booster pump on the humidification system becomes superfluous!

Schematic layout

Low-pressure systems generally get by with a significantly shallower design depth than high-pressure humidifiers. Due to the arrangement of the evaporator ceramics so that they cover the full area, and as a result of the spray cone of the molecular diffuser nozzles, the entire overall depth of the Condair DL can be reduced to up to 600 mm. Thanks to its compact design, the humidification chamber can also be shortened, achieving a significant saving in materials.

PDF / Brochure: Condair DL hybrid humidifier

---
